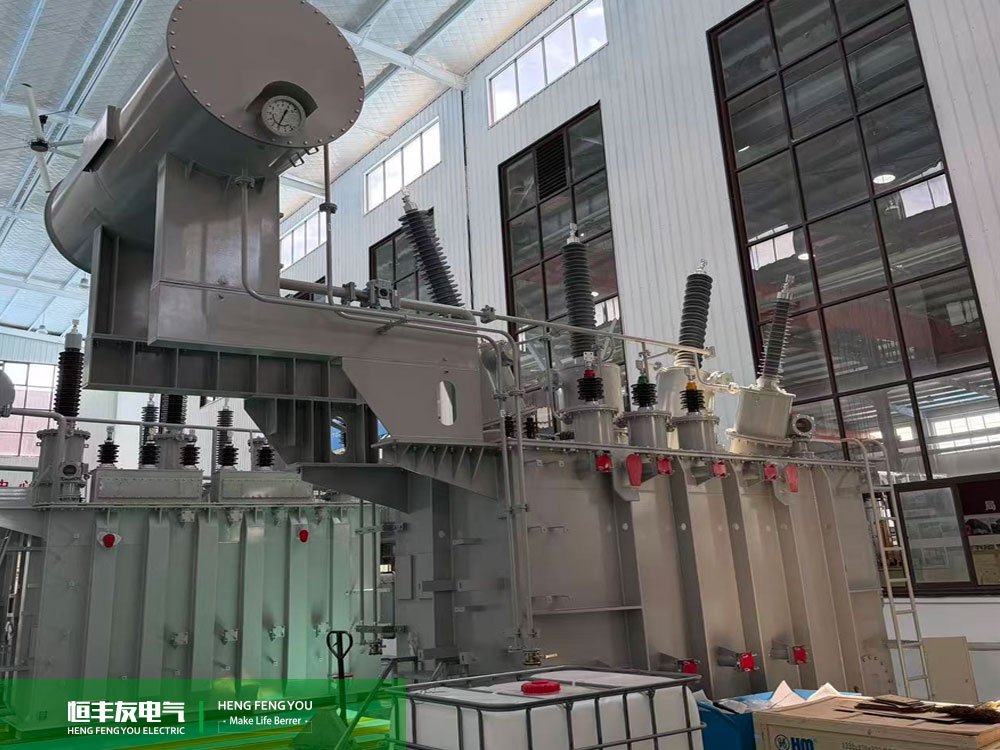

Solution for 6‑Unit 20MVA‑115/13.8kV Power Transformer Pr

I. Project Overview

This project supplies 6 units of 20MVA‑115kV three‑phase oil‑immersed power transformers for a residential substation in Guadalajara, Mexico. The custom‑designed transformers address seven critical power‑supply challenges of Guadalajara’s central plateau: intense high‑temperature solar exposure, large diurnal temperature swings, strict seismic requirements for earthquake zones, 60‑Hz utility grid operation, distribution‑grid voltage fluctuations, urban residential noise control, and corrosion from high humidity and sand‑dust in rainy seasons.

Hengfengyou Electric boasts extensive experience in delivering high‑voltage distribution transformers for North American and Mexican export markets. Its products comply with Mexico’s local standard NMX‑J‑116‑ANCE and electrical safety code NOM‑001‑SEDE, while also conforming to ANSI C57 and IEC 60076 series standards, and meeting grid‑connection requirements of Comisión Federal de Electricidad (CFE), Mexico’s federal power commission. Featuring 115 kV high‑voltage incoming and 13.8 kV medium‑voltage distribution output, the transformers deliver stable step‑down power supply for large‑scale new residential buildings, community commercial facilities, and distributed rooftop PV interconnection in Guadalajara, ensuring reliable power for tens of thousands of local residents.

1. Seven Key Challenges for the Guadalajara Residential Substation in Mexico

a. Extreme high‑temperature solar exposure in summer: Ambient temperature ranges from ‑5 ℃ to +45 ℃. Prolonged summer high temperatures raise core losses and cause winding over‑temperature in conventional 60‑Hz transformers. Intense outdoor UV radiation accelerates ageing of tank paintwork and sealing components and shortens insulation service life.
b. Plateau operating conditions in central Mexico: The substation site sits at approximately 1 550 m above sea level. Thin air reduces air‑cooling efficiency. Over‑temperature alarms readily occur under full‑load conditions during peak summer air‑conditioning loads for residential consumers.
c. Severe distribution‑grid voltage fluctuations: Large day‑night load differences coexist with massive rooftop PV interconnection on Mexico’s 115 kV transmission‑to‑13.8 kV distribution network. Off‑circuit tap‑changing cannot stabilize voltage on the consumer side.
d. Rigorous seismic requirements for earthquake zones: Guadalajara lies within the Circum‑Pacific Seismic Belt. Substation equipment must adopt S2‑grade seismic design to prevent tank cracking, bushing damage and service outages under seismic shocks.
e. High humidity in rainy seasons plus sand‑dust corrosion: Heavy rainfall and high humidity prevail in rainy seasons, while sand‑dust is prominent in dry seasons. Large diurnal temperature differences trigger tank condensation, leading to tank rusting, seal water ingress and internal insulation dampening.
f. Harmonic interference from distributed PV: Massive rooftop PV interconnection introduces harmonic distortion, which may trigger mis‑operation of distribution protection relays and metering errors and impair power‑supply reliability for residents.
g. Environmental noise control in residential areas: The substation is adjacent to dense residential communities. Excessive equipment noise will fail environmental assessment and give rise to resident complaints under municipal environmental regulations.

2. Key Technical Specification Table for 20MVA‑115kV/13.8kV Three‑Phase Oil‑Immersed Power Transformer

II. Advantages of Hengfengyou Electric’s Custom‑Built 20MVA‑115kV/13.8kV Power Transformer Solution for Mexico

1. Batch delivery of 6‑unit package cuts overall capital expenditure and O&M costs for residential substations

Conventional piece‑by‑piece procurement incurs repeated costs for drawing design, production scheduling, ocean freight & customs clearance and civil‑works adaptation, while resulting in diversified spare‑part models. This project adopts unified drawings and synchronous production for all six transformers, with consolidated container ocean shipment to Manzanillo Port:

• Grouped redundant multi‑unit architecture eliminates investment in dedicated spare‑transformer civil foundations and saves substation land acquisition and civil‑works costs.
• Cooling fans, 60‑Hz OLTC tap‑changers, bushings and temperature‑monitoring modules share common specifications, cutting spare‑part inventory by 55 %.
• Mass‑production reduces unit manufacturing cost. Overall substation equipment investment is lowered by 14 % compared with fragmented batch‑by‑batch procurement.
• Full documentation compliant with NMX‑J‑116‑ANCE local standards with bilingual Spanish‑English technical files enables one‑time CFE grid‑connection filing.

2. ±8 % OLTC on‑load tap‑changing plus Yyn0d11 vector group accommodates residential load fluctuations and rooftop PV interconnection

Residential districts in Guadalajara exhibit sharp diurnal power‑consumption differences: high PV power output occurs during daytime, while heavy residential air‑conditioning and appliance loads concentrate at night, creating prominent voltage swings on the 115 kV side. Off‑circuit tap‑changing requires power outages for tap adjustment and may lead to over‑voltage or under‑voltage conditions that damage household appliances.
a. OLTC on‑load tap‑changer with ±8 % tap range and 17 fine tap positions enables uninterrupted continuous voltage stabilization, confining 13.8 kV medium‑voltage output voltage deviation within ±3 % to protect household equipment.
b. Yyn0d11 vector group combined with K‑factor ≥4 harmonic‑resistant windings effectively suppress harmonic distortion generated by PV inverters and avoid mis‑operation of protective relays and metering errors.
c. 8.5 % standard short‑circuit impedance conforms to short‑circuit‑current limits of Mexico’s 115 kV distribution network, supporting 2‑second short‑circuit withstand capability and complying with NMX‑J‑116‑ANCE dynamic‑thermal‑stability criteria.

3. 60‑Hz dedicated electromagnetic simulation, ONAN/ONAF composite cooling and high‑purity copper windings adapt to 1 550 m altitude and +45 ℃ extreme high temperature

At the 1 550 ‑meter‑high Guadalajara site, thin plateau air degrades heat dissipation. Combined with summer temperatures up to +45 ℃, simple retrofitting of 50‑Hz transformers for 60‑Hz service causes elevated core magnetic flux density, soaring no‑load losses and over‑temperature tripping during peak summer consumption.
a. Whole‑unit electromagnetic simulation exclusively for 60 Hz optimizes core flux density to avoid over‑heating and excessive noise caused by 50‑Hz retrofitting. Fans, oil pumps and temperature‑controller motors adopt genuine 60‑Hz rated components.
b. High‑purity electrolytic copper windings deliver superior thermal conductivity, lowering winding hot‑spot temperature by 10 K under equivalent load. Temperature rise complies with NMX‑J‑116‑ANCE: top‑oil temperature rise ≤50 K, average winding temperature rise ≤60 K.
c. ONAN/ONAF dual‑mode cooling system with heat‑dissipation area enlarged by 15 %. Temperature controllers acquire real‑time oil temperature and automatically activate forced‑air cooling under high‑load high‑temperature conditions to offset plateau heat‑dissipation attenuation.
d. High‑temperature anti‑oxidant mineral insulating oil conforming to NMX specifications resists sludge formation under prolonged high‑temperature solar exposure and maintains stable insulation strength. Enlarged internal oil ducts enhance insulation margin. Continuous full‑rated‑load operation is guaranteed under combined conditions of +45 ℃ extreme ambient temperature and 1 550 m altitude, preventing power outages from over‑temperature tripping during residential peak‑demand periods.

4. IP64 full‑sealed outdoor C4 anti‑corrosion and S2‑grade seismic structure withstand high‑humidity condensation, sand‑dust and seismic risks

Guadalajara faces rainy‑season high humidity and large diurnal temperature swings that induce tank condensation, sand‑dust in dry seasons, plus seismic activity. Outdoor transformers are threatened by rusting, water ingress and seismic‑impact damage.
a. Tank and radiators use high‑strength anti‑corrosion steel plates treated with sandblasting, epoxy zinc‑rich primer and weather‑resistant polyurethane topcoat triple‑layer coating system, passing 1 000‑hour neutral salt‑spray testing to resist UV radiation, rain and sand‑dust erosion.
b. IP64 all‑weather enclosure. Multi‑layer ageing‑resistant fluororubber gaskets for flanges and bushing seats block rain, sand‑dust and condensed moisture from entering the transformer tank.
c. Diaphragm‑type conservator paired with high‑capacity moisture‑absorbing breather isolates ambient moisture and reduces annual on‑site oil‑filtering maintenance frequency. High‑voltage bushings adopt enhanced pollution‑resistant external insulation for heavy‑sand‑dust outdoor service.
d. Reinforced S2‑grade seismic construction: strengthened tank base, seismic support brackets for bushings and reinforced internal winding clamping structure. Validated via seismic‑simulation shock tests to mitigate bushing fracture and tank leakage risks during earthquakes and sustain residential power supply.

5. Optimized low‑noise design meets municipal environmental‑protection requirements for residential zones

Given the substation’s proximity to dense residential communities, excessive noise will fail municipal environmental assessment under Mexican regulations.
a. High‑grade low‑loss grain‑oriented silicon steel sheets are used for cores. Optimized core‑joint shock‑absorbing structure reduces magnetostrictive vibration noise at 60 Hz.
b. Shock‑absorbing bases are fitted for radiators and cooling fans; low‑noise variable‑speed 60‑Hz fans are deployed.
c. Measured full‑load noise ≤68 dB(A), satisfying Mexican environmental requirements for power facilities in residential areas and reducing extra investment in noise‑barrier retaining walls.

6. Full NMX‑J‑116‑ANCE standard‑system compliance with ANSI/IEC compatibility for CFE grid‑connection and NOM‑001‑SEDE safety regulations

Insulation impulse withstand, loss and temperature‑rise tests are performed against local Mexican NMX‑J‑116‑ANCE, alongside ANSI C57 and IEC 60076. Earthing arrangements and safety clearances on‑site comply with NOM‑001‑SEDE electrical‑safety specifications for CFE acceptance.
a. High‑voltage 115 kV bushings and winding insulation are customized for local lightning‑over‑voltage levels to withstand frequent thunder‑storm surges.
b. Dual earthing terminals are furnished on transformer tanks, with earthing schemes complying with NOM‑001‑SEDE earth‑resistance requirements.
c. Buchholz relays, pressure‑relief valves, optical‑fiber winding temperature sensors and PT100 oil‑temperature monitors are all 60‑Hz electrical components. Temperature‑control panels feature Spanish‑language user interfaces.
d. Factory Acceptance Test (FAT) and type‑test certificates are provided in Spanish‑English bilingual versions for direct submission to CFE authorities and supervisory engineers for grid‑connection acceptance in Mexico.

III. Reference Benchmark Projects for Distribution Networks in Mexico

Case 1: 115 kV distribution substation for a new residential district in Querétaro, Mexico. Four units of 16 MVA transformers from the same 60‑Hz series were installed at a site 1 480 m above sea level with maximum summer ambient temperature 43 ℃ and concentrated rooftop PV interconnection. Post‑commissioning results:
a. Stable oil temperature without over‑temperature tripping during peak summer air‑conditioning loads, delivering continuous reliable power for tens of thousands of residents.
b. OLTC real‑time voltage regulation confines 13.8 kV distribution‑network voltage fluctuation within ±2.8 %, sharply cutting household‑appliance‑fault complaints from residents.
c. Measured unit noise reaches 67 dB(A), successfully passing municipal environmental assessment. No tank rusting or water‑ingress occurs during rainy‑season operation, and maintenance workload drops by 60 %.

Case 2: Suburban distribution substation in Aguascalientes, central Mexico, within a high‑seismic‑risk zone with extensive rooftop PV interconnection. S2‑seismic‑grade transformers of the same product family were selected for multi‑unit parallel operation. The equipment sustained multiple moderate‑magnitude earthquakes without oil leakage or bushing damage. Satisfactory harmonic‑suppression performance prevented protective‑relay mis‑operations. This installation serves as a demonstration reference for residential‑distribution‑network retrofits in central Mexico.

Case 3: Residential‑area capacity‑expansion project on the outskirts of Mexico City. The site is located at 2 200 m altitude under intense solar‑heat exposure with strict residential‑area noise‑control constraints. The complete equipment operates stably under high‑altitude high‑temperature conditions with no extra noise‑reduction barriers required. The solution has gained recognition from local EPC contractors and CFE supervisory engineers.

IV. Custom R&D and Factory Acceptance Test (FAT) for Mexico‑Specified 20MVA‑115/13.8 kV Transformers

1. Specialized Custom‑Development Workflow

Our engineering team conducts multi‑round simulation analyses covering electromagnetics, temperature rise, seismic performance and over‑voltage scenarios, targeting site conditions in Guadalajara: 1 550 m altitude, ‑5 ℃ ~ +45 ℃ high‑temperature solar exposure, high‑humidity sand‑dust rainy‑season conditions, S2‑grade seismic requirements, 60‑Hz grid operation and NMX‑J‑116‑ANCE standards:
a. Optimize 60‑Hz‑specific core electromagnetics and verify temperature‑rise margin under +45 ℃ extreme ambient temperature.
b. Implement enhanced S2‑grade seismic structural design, increase external insulation creepage distance for bushings and adopt UV‑resistant, moisture‑resistant Class‑A insulation materials.
c. Configure 8.5 % short‑circuit impedance matching Mexico’s 115 kV distribution network and complete circuit design for ±8 %, 17‑position OLTC tap‑changing.
d. Formalize specifications for NMX energy‑efficiency indexes, container shipping dimensions, C4 anti‑corrosion measures and seismic solutions before mass production launch.

2. Comprehensive Factory Acceptance Test (FAT) (Bilingual Spanish‑English reports issued per NMX‑J‑116‑ANCE)

Each transformer undergoes routine tests under Mexican local standards plus ANSI and IEC requirements, supplemented by special tests simulating local Mexican operating conditions. Units failing loss or temperature‑rise criteria are prohibited from shipment.
a. Basic routine tests: DC resistance measurement, turn‑ratio and vector‑group verification, 60‑Hz no‑load loss, load loss, short‑circuit impedance, power‑frequency withstand voltage, BIL lightning impulse test, SIL switching impulse test, full‑stroke OLTC functional check and CT accuracy calibration.
b. High‑altitude high‑temperature simulation: Thermal‑simulation validation for +45 ℃ ambient conditions, heat‑dissipation correction simulation for 1 550  m altitude and 24‑hour continuous full‑load temperature‑rise monitoring.
c. Environmental‑durability special tests: 1 000‑hour neutral salt‑spray ageing test, IP64 dust‑and‑water‑ingress verification and UV‑weathering ageing test for coating systems.
d. Seismic and fault‑withstand testing: S2‑grade seismic‑simulation shock test and 2‑second short‑circuit dynamic‑thermal‑stability test to validate winding and tank fault‑endurance performance.
e. Auxiliary‑system interlock testing: 60‑Hz fan‑oil‑pump linkage, Spanish‑language temperature‑controller logic validation, Buchholz‑protection and over‑temperature alarm‑trip full‑function verification.

V. SAT Site‑Delivery and Localized Operation‑Maintenance Services for Mexico

1. Cross‑border Ocean‑Shipping Delivery Solution (Shipment to Manzanillo Port, inland trucking to Guadalajara)

Equipment components adopt nitrogen‑filled anti‑rust packaging. Tanks, high‑voltage bushings and OLTC tap‑changers are individually protected against moisture for container‑based export shipping. NMX‑standard technical documentation, Spanish‑language drawings and complete test reports are prepared in advance for Mexican customs clearance. Port lifting services and over‑land heavy‑haul transport permits are arranged for oversized cargo; temperature‑humidity loggers monitor moisture conditions during transit.

All six units are scheduled and shipped synchronously. Factory custom‑production lead time is 70 days; ocean‑transit duration ranges from 32 days to 38 days. Total lead‑time to site in Guadalajara is approximately 120 days. Production scheduling can be adjusted according to substation civil‑works progress; expedited delivery options are available.

2. Standardized On‑Site SAT Installation & Commissioning

a. Tri‑party joint unpacking inspection: The equipment package is jointly checked by the end‑user, CFE supervisory engineers and our South‑American‑based field engineers for tank, bushing and sealing integrity.
b. On‑site seismic and moisture‑proof reinforcement. Complete substation earthing system complying with NOM‑001‑SEDE safety‑earthing specifications.
c. On‑site electrical re‑testing: Insulation‑resistance measurement, turn‑ratio verification, tap‑changer operation check and protection‑relay interlock testing. Spanish‑language SAT field‑test records acceptable to CFE are generated.
d. 48‑hour no‑load trial operation, followed by step‑wise load‑ramp‑up for connection to the 115 kV grid and commissioning for residential‑district power supply.

3. Localized Operation‑Maintenance Support in Mexico

a. Supply complete Spanish‑English bilingual drawings, FAT factory‑test reports, NMX‑J‑116‑ANCE compliance certificates, substation operation‑maintenance manuals and operating procedures for high‑altitude high‑temperature seismic‑zone service conditions.
b. Free hands‑on operational training: High‑temperature inspection routines, OLTC tap‑changer maintenance, transformer‑oil DGA diagnostic testing, 60‑Hz temperature‑controller troubleshooting and post‑earthquake equipment‑inspection procedures.
c. Local spare‑parts warehouse in Mexico. Standard spare parts including OLTC tap‑changers, fans, oil pumps, temperature controllers and sealing gaskets can reach Guadalajara and other central‑region sites within 10‑15 days to minimize residential‑district outage durations.
d. 24‑month full‑unit warranty, lifelong remote technical support. Resident high‑voltage electrical engineers in South‑America are available for on‑site inspection and emergency troubleshooting.

VI. FAQ for 20MVA‑115/13.8 kV Power Transformer for Mexico

Q1: Under combined conditions of 1 550 m altitude in Guadalajara plus summer +45 ℃ high temperature, will full‑load operation trigger over‑temperature‑caused power outages?
A: This transformer family features dedicated 60‑Hz electromagnetic optimization and ONAN/ONAF dual‑mode cooling systems with heat‑dissipation area enlarged by 15 %. Thermal simulation corrected for high‑altitude heat‑dissipation degradation and long‑duration temperature‑rise testing at +45 ℃ ambient conditions are completed in factory. Long‑term full‑load operation is achievable under extreme‑condition scenarios. Multi‑layer protection including oil‑temperature sensors and optical‑fiber winding temperature sensors triggers staged fan activation, over‑temperature alarms and high‑temperature tripping to minimize risks of residential‑district power outages.

Q2: Can the equipment pass CFE grid‑connection acceptance and NOM‑001‑SEDE construction‑site safety acceptance in Mexico?
A: Type‑test and FAT factory‑test reports strictly follow NMX‑J‑116‑ANCE and are compatible with ANSI C57 and IEC 60076. All technical documents are bilingual Spanish‑English. Earthing, seismic performance and enclosure‑protection structures satisfy NOM‑001‑SEDE safety specifications, directly supporting tender‑phase use, grid‑connection filing and on‑site supervisory acceptance.

Q3: What is the overall delivery cycle for the complete package of six 20 MVA units?
A: 70 days for custom factory production plus 32‑38 days ocean‑shipping, totalling approximately 120 days for delivery to the Guadalajara job‑site. Production schedules can be adjusted per project milestones; expedited‑delivery solutions are offered.

Q4: Is this transformer compatible with on‑site rooftop PV interconnection for residential districts?
A: The Yyn0d11 vector group paired with K‑factor ≥4 harmonic‑resistant windings delivers excellent harmonic‑suppression capability. Wide‑range ±8 % OLTC on‑load tap‑changing accommodates day‑and‑night PV‑output fluctuations. The 8.5 % short‑circuit impedance is optimized for Mexico’s 115 kV residential distribution network. Multiple operational reference projects exist for PV‑integrated residential substations across central Mexico.

VII. Solution Summary & Cooperation Inquiry

This complete‑package solution of six 20MVA‑115/13.8 kV oil‑immersed power transformers fully covers power‑distribution requirements for large‑scale residential communities, commercial premises and rooftop PV interconnection in Guadalajara, Mexico. Seven customized design highlights are implemented: 60‑Hz dedicated electromagnetic design, wide‑range OLTC on‑load voltage regulation, enhanced heat‑dissipation for high‑altitude high‑temperature service, K‑factor harmonic‑resistant windings, C4‑grade anti‑corrosion IP64 sealing, S2‑grade seismic engineering and full‑compliance with Mexican local‑standards system. It delivers one‑stop resolution for seven core industry pain points: high‑altitude solar‑heat exposure, seismic hazards, high‑humidity sand‑‑dust rainy‑season environment, grid‑voltage fluctuations, PV‑induced harmonic interference, residential‑area noise restrictions and CFE grid‑access compliance.

Hengfengyou Electric (sales@hfy-transformer.com) maintains full familiarity with NMX‑J‑116‑ANCE, NOM‑001‑SEDE and CFE grid‑access specifications of Mexico. Custom‑built oil‑immersed distribution transformers across capacity ranges for 115 kV / 69 kV / 138 kV voltage classes are available for new‑build residential substations, urban‑capacity‑expansion projects and new‑energy‑support EPC projects in Mexico. Mexican local power utilities, international EPC contractors and foreign‑trade suppliers are welcome to request detailed technical quotations, complete Spanish‑language qualification documents and type‑test reports。
