Panama 1000kVA 13.2kV/480V-277V Pad-Mounted Transformer Full

Panama serves as a vital transportation hub connecting North and South America, featuring a typical tropical marine climate with high temperature, high humidity and severe salt spray corrosion. Its power grid operates at a standard frequency of 60 Hz. Industrial parks, free trade zones, residential areas and port terminals across the country have an urgent demand for power distribution equipment that features safety, environmental friendliness, high efficiency and outstanding reliability.

Leveraging robust R&D and manufacturing capabilities in the power transmission and distribution industry as well as comprehensive international certification systems, Hengfengyou Electric delivered a full-process solution for 5 sets of 1000kVA 13.2kV/480V-277V copper winding PCB-free vegetable oil ring main unit type pad-mounted transformers for Panama. The solution covers the entire industrial chain including design, production, testing, packaging, transportation, installation and operation & maintenance. Customized to fully comply with American standards, local climatic conditions and environmental regulations, it facilitates the safe upgrading and green low-carbon development of Panama’s power grid.

I. Project Overview & Core Technical Parameters

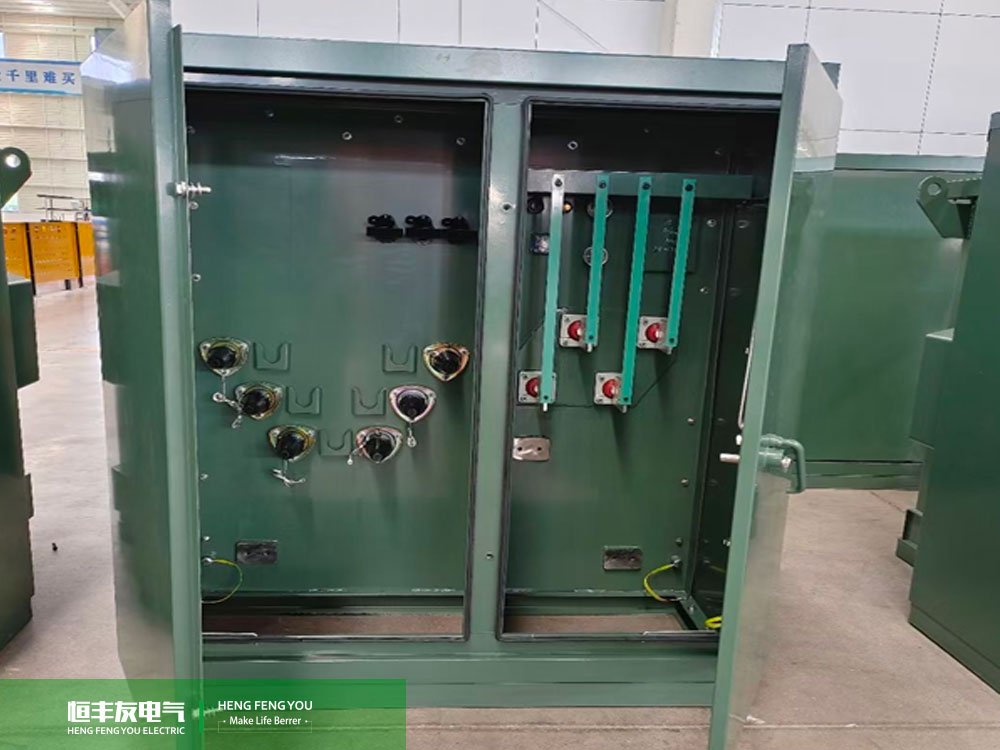

Tailored for industrial parks in Panama, this equipment adopts an integrated pad-mounted structure, integrating transformer body, ring main switch, fuse, tap changer, low-voltage power distribution and protection devices. It strictly complies with ANSI C57, IEEE, DOE, UL, CSA, IEC and other international standards, matching Panama’s 60 Hz grid frequency and the core power demand of 13.2 kV high-voltage input and 480V-277V low-voltage output.

Highlighted advantages include low power loss with full copper windings, eco-friendly PCB-free vegetable oil insulation, flexible ring network power supply, excellent salt spray corrosion resistance, high temperature and humidity resistance, as well as maintenance-free and long service life performance, which fully meet Panama’s environmental protection policies and stable operation requirements of the power grid.

II. Customized Design: Adaptation to Panama’s Operating Conditions & Requirements

1. Electromagnetic & Environmental Adaptation Design

Considering four major local characteristics: 60 Hz grid frequency, tropical high temperature & high humidity, salt spray corrosion and priority on environmental protection, professional electromagnetic simulation software is adopted to accurately calculate power loss, temperature rise and short-circuit impedance, and optimize parameters of iron core and windings.

High-permeability grain-oriented silicon steel sheets are used for the iron core to remarkably reduce no-load loss. Both high-voltage and low-voltage windings are wound with high-purity oxygen-free copper flat wires with a conductivity of 99.99%, enhancing current-carrying capacity and short-circuit resistance while cutting operating loss.

Natural PCB-free vegetable oil is applied as the insulating medium, with a fire point up to 300℃. It is non-toxic and harmless, with a natural biodegradation rate of over 97% within 28 days. The risk of pollution caused by mineral oil leakage is completely eliminated, aligning with Panama’s ecological and environmental development concepts.

2. Structural & Anti-corrosion Drawing Design

A dedicated technical team completed a full set of construction drawings to adapt to local operating conditions and American standards:

• Iron Core & Windings: Optimized oil duct layout and insulation thickness for 60 Hz operation to strengthen heat dissipation and withstand high temperature.
• Ring Network Structure: Equipped with American-standard ring main switches, Eaton fuses and on-load tap changers to realize flexible switching of ring network power supply and guarantee continuous power supply, in line with DOE2016 energy efficiency standards.
• Oil Tank & Protection: The oil tank is made of thickened steel plates after strength verification via ANSYS finite element analysis. Adopting heavy-duty anti-corrosion coating and fully sealed structure, it passed C5-grade salt spray test to resist coastal salt spray erosion. Structures against typhoon, rain and surge are reserved to cope with extreme weather.
• Environmental Protection Design: Fully sealed structure prevents vegetable oil leakage. Internal materials feature excellent compatibility with vegetable oil to slow down insulation aging and extend equipment service life.

3. Design Review & Compliance Verification

A special review involving technical, process and quality teams was carried out to verify six core aspects: electromagnetic performance, structural strength, ring network power supply reliability, compliance with American standards, adaptability to island salt spray environment and safety of vegetable oil insulation. Only after passing the review can the project proceed to manufacturing.

III. Manufacturing Process: Strict Full-Round Quality Control for Panama-Dedicated Durable Equipment

1. Procurement & Rigorous Inspection of Raw Materials

Following the SQA full-process quality control system, all core materials are 100% re-inspected to ensure quality from the source:

• Silicon Steel Sheets: High-permeability grade, tested for magnetic performance and dimensional accuracy to reduce no-load loss.
• Conductors: Class T1 high-purity oxygen-free copper flat wires, inspected for conductivity and mechanical strength to guarantee winding quality.
• Insulating Materials: Special high-temperature and high-humidity resistant insulation boards, tested for moisture content and electrical strength for humid local environment.
• Vegetable Insulating Oil: Refined from natural plant seeds and free of PCB. Tested for fire point, flash point, breakdown voltage and biodegradation rate to meet both environmental and insulation standards.
• Anti-corrosion Materials: Heavy-duty coatings and sealants pass salt spray, damp heat and ultraviolet aging tests for long-term outdoor application.

2. Precision Fabrication of Core Components

• Iron Core: Adopts precision cutting, deburring and insulation coating processes, together with six-stage step lap technology, to lower no-load loss and operating noise. The noise level is controlled below 60dB(A), suitable for residential and commercial areas.
• Coils: Wound in a constant temperature & humidity clean workshop. High-voltage windings are equipped with reinforced multi-layer insulation, and low-voltage windings are arranged evenly. DC resistance and turn number of each coil are tested one by one to ensure consistent electrical performance. Full copper windings feature excellent high temperature resistance and aging resistance for long-term full-load operation.
• Oil Tank: All welded tanks pass kerosene leakage test with zero leakage. After sand blasting and rust removal, heavy-duty anti-corrosion spraying is conducted to form a uniform and well-adhered coating meeting C5 anti-corrosion requirements.
• Ring Network Components: American-standard ring main switches, fuses and other accessories are precisely assembled. The linkage performance of each unit is tested to ensure flexible and reliable switching of ring network.

3. Assembly, Drying & Final Assembly

• Precise assembly of the transformer body is implemented. Silver-copper welding is applied for leads to avoid cold solder joints and missing welds. All accessories are installed in compliance with specifications, and cleanliness is strictly controlled to prevent foreign impurities.
• Three times of vacuum drying are conducted with sufficient drying duration to thoroughly remove moisture from insulation, improving insulation stability in high-humidity conditions.
• After final assembly, the unit is vacuumized to ≤133 Pa and kept for 24 hours, followed by vacuum filling with dedicated vegetable oil. This process eliminates air bubbles and leakage risks to ensure reliable internal insulation. The fully sealed structure blocks moisture and salt spray ingress.

IV. Factory Acceptance Test (FAT): Full Compliance for Risk-Free Delivery

1. Routine Tests

A complete set of routine tests are performed on every unit before delivery to verify basic performance:

• Electrical Performance: DC resistance, voltage ratio and vector group of windings are tested with a tolerance within ±0.5%.
• Insulation & Oil Quality: Insulation resistance, dielectric loss, breakdown voltage, moisture content and chromatographic analysis of vegetable oil are inspected to ensure qualified insulation and oil quality.
• Operating Performance: No-load loss, load loss and temperature rise tests are carried out to verify high efficiency and energy-saving performance under 60 Hz operation, complying with DOE2016 energy efficiency standards.
• Protection & Ring Network Function: Tap changers, fuses and ring main switches are tested for reliable protection and flexible switching.

2. Type & Special Tests

Customized special tests are conducted targeting Panama’s tropical marine climate and environmental requirements:

• Lightning Impulse Test: Enhances lightning protection capability against severe lightning overvoltage.
• Partial Discharge Measurement: Partial discharge ≤ 100 pC for controllable insulation safety and reduced insulation aging risk during long-term operation.
• Noise Test: Sound level ≤ 60dB(A), meeting low-noise requirements for residential areas.
• Environmental Simulation Test: Continuous operation test under 50℃ high temperature, 95% RH high humidity and salt spray conditions to verify reliability under extreme local working conditions.
• Vegetable Oil Compatibility Test: Long-term aging test confirms no adverse reaction between vegetable oil and internal components.
• All test data are fully filed. Bilingual (Chinese & English) FAT reports are delivered together with goods to prove compliance with American standards and Panama grid regulations.

V. Packaging & Transportation for Cross-Border Delivery: Full Process Safety Control

1. Disassembly & Protection

• Accessories including radiators, elbow connectors, lightning arresters and cable joints are disassembled, numbered and packaged separately to prevent collision and damage during transportation.
• Shockproof cushions are installed on key components such as ring main switches and precision instruments to withstand bumps and impacts in cross-border transportation. Two impact recorders are equipped for each unit to monitor vibration and impact data in real time throughout the whole journey for traceability.

2. Standard Moisture-Proof & Anti-Corrosion Packaging

• The transformer body is placed on a solid wood bracket and wrapped with thickened waterproof tarpaulin for excellent moisture-proof, salt spray-proof and sun-proof performance.
• Accessories are packed in solid wooden cases filled with shockproof foam. Markings including center of gravity, lifting points, moisture-proof and no inversion signs are clearly printed on boxes for cross-border transportation.
• Complete technical documents are attached, including product certificates, FAT reports, bilingual operation & maintenance manuals, accessory specifications, electronic drawings and packing lists, facilitating on-site acceptance and local operation & maintenance in Panama.

3. Customized Cross-Border Transportation Plan

A dedicated transportation scheme is formulated based on combined sea and land transportation features of Panama:

• Transport Route: Optimized sea-land combined route is selected to avoid weight and height restricted sections, ensuring synchronous delivery of all 5 units.
• Transport Protection: All units are shipped in fully sealed containers with desiccants and fixed shockproof devices inside to resist salt spray and bumps during sea transportation.
• Real-Time Monitoring: 3D impact recorders are activated throughout transportation to upload vibration and impact data in real time. Professional staff track the whole process with all data archived for traceability.

VI. On-Site Delivery & Installation: Standard Operation for Successful Commissioning

1. On-Site Unpacking & Acceptance

Joint acceptance is completed with the owner and supervision team of Panama:

• Visual Inspection: Check the appearance of equipment body and accessories for collision, corrosion, leakage and intact coating.
• Accessory Verification: Count accessories one by one against the packing list to ensure no loss or damage.
• Data Check: Verify nitrogen pressure and impact recorder data to confirm no abnormal conditions during transportation.
• Document Acceptance: Inspect complete certification documents, FAT reports and technical files for compliance with relevant standards.

2. Standard Installation Procedures

• Positioning: Hydraulic equipment is used for accurate placement with strictly controlled levelness and installation height to withstand typhoons.
• Accessory Installation: Assemble radiators, bushings and ring network power distribution modules in accordance with construction drawings. Cables and control circuits are connected firmly with reliable insulation.
• On-Site Oil Filling: Inject dedicated vegetable oil suitable for local climate with controlled oil temperature and filling speed to avoid air bubbles.
• Standing & Venting: The equipment stands for 48 hours after oil filling with repeated venting to eliminate internal air bubbles and stabilize insulation performance.

3. Site Acceptance Test (SAT)

Comprehensive SAT is carried out in accordance with Panama grid standards and international specifications. Test results are compared with factory data to confirm no damage caused by transportation and installation:

• Re-test insulation performance and oil quality including insulation resistance, dielectric loss and breakdown voltage of vegetable oil.
• Recheck electrical parameters such as winding DC resistance, voltage ratio and vector group.
• Verify protection devices, cooling systems, gas relays and linkage performance of ring main switches.
• Conduct AC withstand voltage test and winding deformation test to ensure consistent electrical performance with factory status.

4. Energization & Commissioning

After all tests pass, energization is implemented in strict accordance with operating regulations:

• No-Load Switching: Perform 5 times of no-load closing switching to monitor excitation inrush current and protection action. Proceed to the next step if no abnormality occurs.
• No-Load Operation: Keep the unit running under no-load condition for 24 hours, and continuously monitor temperature rise, noise, oil level and leakage status.
• On-Load Commissioning: Gradually connect loads after stable no-load operation. Professional technicians stay on site for 72 hours to track operating status and ensure successful grid connection and stable operation.

VII. Full-Process Quality Management: Traceable Nodes & Long-Term Quality Assurance

Hengfengyou Electric implements a full-chain quality management system covering design, production, factory inspection, transportation, installation and operation & maintenance:

• Design Phase: 100% pass rate for compliance review, fully meeting requirements of American standards, environmental protection and local operating conditions.
• Production Phase: 100% re-inspection of raw materials, full monitoring of each working procedure and strict cleanliness control to eliminate potential quality risks.
• Factory Phase: No delivery before passing full FAT inspection, with all test data well filed.
• Transportation Phase: Continuous monitoring and archiving of impact data to guarantee transportation safety.
• On-Site Phase: SAT results are compared with factory data to ensure no performance attenuation, and installation quality is fully controlled.
• Document Delivery: Provide complete bilingual technical documents including certificates, FAT/SAT reports, operation & maintenance manuals and electronic drawings to support independent operation & maintenance by local teams in Panama.

VIII. Solution Summary

The project of 5 sets of 1000kVA 13.2kV/480V-277V copper winding PCB-free vegetable oil ring main unit type pad-mounted transformers delivered by Hengfengyou Electric is a customized power supply solution fully adapted to American-standard power grid, tropical marine climate, environmental policies and ring network power supply demands of Panama, rather than a simple equipment delivery.

Core Advantages:

1. Full copper windings with low power loss to adapt to high-load power consumption in Panama;
2. PCB-free vegetable oil insulation, eco-friendly, safe and explosion-proof, conforming to local ecological protection concepts;
3. Ring main unit design improves power supply reliability for continuous power supply of key areas such as industrial parks and ports;
4. C5-grade heavy anti-corrosion performance resists high temperature, high humidity and salt spray in harsh local environment;
5. Full international certifications and compliance with American standards ensure reliable quality.

With mature manufacturing systems, strong R&D capabilities, rich global delivery experience and complete international certifications, Hengfengyou Electric provides safe, efficient, durable and maintenance-free high-quality power distribution equipment for Panama, boosting the upgrading of local power grid, optimization of energy structure and sustainable economic development.
