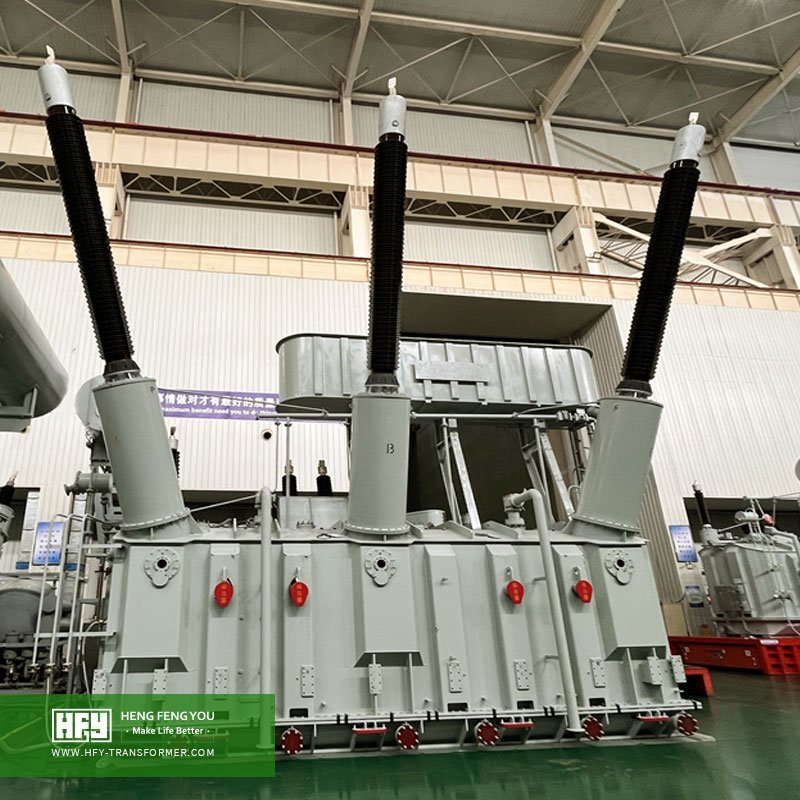

The 400kV three‑phase oil‑immersed power transformer is the mainstream ultra-high voltage core equipment for European, Middle Eastern, African, and South Asian national power grids. As a key voltage level for international cross-border power interconnection, large-scale energy base delivery, national backbone grid construction, and major power plant grid integration, it undertakes long-distance, large-capacity bulk power transmission and regional power balancing tasks. The maximum design capacity reaches 750MVA, adapting to the large-load operation characteristics of national main grids in emerging industrial countries. With 30 years of UHV transformer manufacturing experience, Hengfengyou Electric provides standard and customized 400kV transformer solutions fully compliant with IEC, EU, and British standard grid specifications, featuring low loss, strong grid adaptability, wind/solar fluctuation resistance, and full-range environmental reliability. The products are widely operated in 60+ countries adopting 400kV grid standards.
Mainstream Type: Three‑phase two‑winding / three‑winding / auto-transformer oil‑immersed power transformer (400kV auto-transformer is the most widely used type for national grid interconnection)
Capacity Range: 180MVA – 750MVA
Cooling: OFAF, ODAF (mainstream for 400kV national grid); ONAN/ONAF for small and medium-capacity industrial substation models
Core Application Countries & Scenarios
400kV Standard Applicable Countries: UK, Germany, France, Italy, Spain and other EU countries; Saudi Arabia, UAE, Qatar, Kuwait (Middle East); Nigeria, Kenya, Ghana, Ethiopia, Tanzania (Africa); Bangladesh, Sri Lanka, Nepal (South Asia); Singapore, Malaysia (Southeast Asia)
Typical Scenarios: National backbone grid main substations, cross-border power interconnection projects, large-scale thermal power/gas power plant main step-up stations, centralized wind/solar new energy bases, national metropolitan core power supply hubs, large industrial park comprehensive power supply stations
Dominant Standards: IEC60076 (mandatory for 400kV global grid), EN 60076, BS British Standard, EU Ecodesign Standard; compatible with GOST, GB, fully adapted to European, Middle Eastern and African national grid bidding requirements
Certifications: ISO, CE (EU mandatory), IEC, SABS (South Africa), COC (Middle East mandatory), CSA, UL, meeting grid access standards of all 400kV system countries
Energy Efficiency & Loss: Efficiency ≥99.5%, fully compliant with EU 2015/2014/548/EC Tier 2 highest energy-saving standard. Adopts European-standard low-loss core design, with ultra-low no-load and load loss, meeting the long-term energy-saving and low-carbon operation requirements of European mature grids and emerging national grids.
Two‑Winding Transformer: 400kV + single medium/low voltage; simple structure, high stability, cost-effective, mainly used for independent power plant step-up and single-load large industrial projects in Africa and Southeast Asia
Three‑Winding Transformer: 400kV + dual medium/low voltage; multi-level power supply, high grid dispatch flexibility, suitable for urban core substations and comprehensive energy hubs in Middle Eastern and European cities
Auto‑Transformer (Most Popular): Optimized for 400kV national grid main connection, small size, low loss, high transmission efficiency, the mainstream model for European cross-regional grid interconnection and Middle East national backbone grid reconstruction and expansion
MR (Germany): European grid standard configuration, mechanical life >200,000 operations, ultra-high stability, mandatory preferred for EU national grids and Middle East core power grid projects
ABB (Europe): Perfect compatibility with European smart grids, complete local service networks in Europe, Middle East and Africa, the first choice for international EPC large-scale projects
Huaming (China): Cost-effective, fast after-sales response, suitable for cost-sensitive government grid renewal and industrial supporting projects in Africa and South Asia
Scenario Selection Principle: European & Middle East core grid projects adopt imported MR/ABB; African and South Asian conventional grid and industrial projects adopt cost-effective domestic configurations.
Middle East Region (Saudi Arabia/UAE/Qatar): Special high-temperature and sand-proof design, enhanced heat dissipation, anti-dust and anti-sandstorm coating, stable operation at ambient temperature +55℃
European Region: Low noise, fireproof and environmentally friendly design, fully compliant with EU urban environmental protection standards, suitable for urban densely populated substations
African Region: Enhanced heavy anti-corrosion, anti-moisture and anti-mold design, adapted to tropical rainy seasons, coastal salt fog and remote harsh operation environments
South Asia & Southeast Asia: High humidity and high-temperature adaptive design, improved insulation and moisture resistance, resisting monsoon and high-temperature humid climate load fluctuations
Adopts European-standard GIS/HGIS switchgear for compact layout, meeting EU substation safety spacing standards. Connected via imported standard gas-oil bushings and GIB closed busbars, fully complying with IEC grid safety specifications. Supports N‑1 safety operation criterion, compatible with single-unit operation, parallel grid connection and cross-regional power interconnection, adapting to the grid operation modes of European mature power grids and developing national power grids.
Lifting & Placement: Standard UHV precision hoisting process, strictly implementing European and international project installation specifications
Accessory Installation: Matching EU-standard radiators, 400kV high-grade bushings, intelligent cooling system and imported OLTC complete sets
Vacuum Oil Filling & Hot Oil Circulation: IEC-standard vacuum degassing and hot oil circulation process to ensure ultra-high insulation level
Standing & Venting: Static placement ≥96 hours, repeated degassing and testing to adapt to European high-standard acceptance requirements
Grounding: Integrated multi-point reliable grounding, grounding resistance ≤1Ω, meeting IEC and EU grid safety standards
Equipped with European-standard high-performance zinc oxide lightning arresters, matched with 400kV high-stability circuit breakers and CSP fuses. Configured with complete differential protection, Buchholz protection, overcurrent/zero-sequence protection, temperature and pressure linkage protection system, fully compliant with European grid relay protection mandatory specifications, realizing full-process safe operation protection.
All tests are carried out in strict accordance with IEC 60076 and EU grid acceptance standards, including winding DC resistance, transformation ratio, polarity and vector group test; insulation resistance, power frequency withstand voltage and induced voltage test; ultra-high standard partial discharge test exclusive for 400kV grid; full oil quality analysis (breakdown voltage, moisture, DGA, furan); no-load and load loss efficiency verification test to meet European and Middle East project high-standard acceptance requirements.
Complete protection linkage test, 5 times no-load impulse closing test, full-load trial operation test, cooling system and OLTC full-stroke debugging, ensuring all indicators meet the grid access standards of 400kV system countries.
Design life ≥40 years, actual service life up to 50 years. Equipped with EU-standard intelligent online monitoring system (DGA, temperature, partial discharge, bushing status, core grounding current). Supports remote cloud monitoring, condition-based maintenance and intelligent early warning, adapting to European smart grid O&M mode and African/Middle East unattended substation operation requirements. Core protection: winding hot-spot temperature ≤58℃, avoiding long-term overload operation.
Optional EU-certified FR3 biodegradable vegetable oil (biodegradability >95%), fully compliant with EU environmental protection and green grid regulations. High proportion of recyclable materials, low carbon footprint, meeting the dual-carbon and environmental assessment requirements of European countries and international energy projects.
Standard EU Standard Model: 180 days
Emergency Global Project Order: Fastest 120 days
Regional Custom Model: Middle East high-temperature sand-proof, African anti-corrosion, European low-noise customized model: 8–12 months
| Item | Core Content | Recommended Scheme/Standard |
|---|---|---|
| Type | 400kV three‑phase oil‑immersed power main transformer | Two/three-winding/auto-transformer, 180MVA–750MVA |
| Applicable Grid | Global mainstream 400kV voltage level countries | EU/Middle East/Africa/South Asia national standard grid |
| Standards | International mainstream UHV standards | IEC/EN/BS/EU Ecodesign, compatible with GOST/GB |
| Efficiency | Ultra‑high efficiency, ultra‑low loss | ≥99.5%, EU Tier 2 highest energy efficiency standard |
| Life | Extra‑long life design | Design life ≥40 years, actual life up to 50 years |
| Eco | EU green environmental protection standard | FR3 vegetable oil optional, biodegradability >95% |
| Cooling | Grid-grade heavy-duty cooling | OFAF/ODAF (mainstream), ONAN/ONAF optional |
| OLTC | Regionally matched brand | MR/ABB for Europe & Middle East; Huaming for Africa & South Asia |
| Grounding | IEC standard safety grounding | Grounding resistance ≤1Ω |
| Delivery | Global project lead time | Standard 180d, fastest 120d, customized 8–12 months |
Hengfengyou 400kV power main transformer is targeted at the global mainstream 400kV voltage system, covering European mature smart grids, Middle East high-load urban power grids, African emerging national power grids and South Asian energy base power supply scenarios. Relying on 30 years of UHV manufacturing experience, the product fully complies with IEC, EN, BS and EU international standards, with efficiency up to 99.5% and design life over 40 years. It has targeted optimized designs for high temperature and sand prevention in the Middle East, moisture and corrosion prevention in Africa, low noise and environmental protection in Europe, realizing highly adaptive operation in different regional climates and grid conditions.
Our 400kV transformers have been successfully delivered and operated in the United Kingdom, Italy, Saudi Arabia, UAE, Nigeria, Kenya, Bangladesh and other 60+ countries, with stable and reliable operation performance. We provide full-life cycle services including customized design, standardized manufacturing, on-site installation guidance, commissioning and intelligent operation and maintenance, providing global customers with professional, compliant and cost-effective 400kV power transmission and transformation overall solutions.
Q1: What is a 400kV power main transformer?
A: 400kV is the most widely used ultra-high voltage level in international power grids, serving as the core equipment for national backbone power transmission. It steps up power from power plants to 400kV for long-distance transmission or steps down 400kV UHV power to 132kV/33kV for urban and industrial power distribution, with a capacity range of 180MVA–750MVA. It is the standard grid configuration equipment for European, Middle Eastern, African and South Asian countries.
Q2: Which countries and scenarios are 400kV transformers suitable for?
Applicable Countries: EU countries, UK, Middle East Gulf countries, most African countries, Bangladesh, Sri Lanka and other South Asian countries.
Core Scenarios: National backbone grid interconnection, cross-border power transmission, large gas/thermal power plant step-up, large wind/solar new energy base grid connection, urban core power supply substations.
Q3: Differences between two-winding, three-winding and auto 400kV transformers?
Two-winding: Simple structure, low cost, for single power plant and industrial step-up projects (Africa, South Asia priority).
Three-winding: Multi-voltage output, flexible power supply, for urban multi-load comprehensive substations (Europe, Middle East priority).
Auto-transformer: Low loss and high efficiency, the mainstream model for national main grid interconnection projects of all 400kV system countries.
Q4: How to select OLTC brands for different regions?
MR (Germany): EU and Middle East national grid mandatory preferred brand, ultra-high stability for long-term high-load operation.
ABB: Suitable for international EPC general contracting projects, with global after-sales network and smart grid adaptation.
Huaming: High cost performance, preferred for African and South Asian government conventional grid and industrial projects.
Q5: What is the delivery cycle for 400kV transformers?
Standard EU/IEC model: 180 days; emergency fast-track order: 120 days fastest; regional climate customized model (high temperature, sand proof, anti-corrosion, low noise): 8–12 months.
Q6: What is the service life and core operating requirements?
Design life ≥40 years (IEC/EU standard), actual service life up to 50 years with good maintenance. Core control index: winding hot-spot temperature ≤58℃, avoid long-term overload operation.
Q7: What is the warranty policy?
24–36 months contract warranty after delivery, covering all manufacturing defects. OLTC and high-voltage bushings enjoy 2 years independent warranty. Exclude man-made damage and natural disaster force majeure.
Q8: What regional after-sales support is available?
Provide overseas on-site installation guidance and commissioning, professional operator training, regular preventive maintenance, 48-hour global emergency response, and intelligent monitoring upgrade and renovation services.
Q9: What is the regional customized advantage of 400kV transformers?
Targeted optimization for different global regions: high temperature and sand resistance for the Middle East, low noise and environmental protection for Europe, moisture and heavy corrosion resistance for Africa, high humidity and high temperature adaptation for South Asia, fully matching local climate and grid operation standards.
