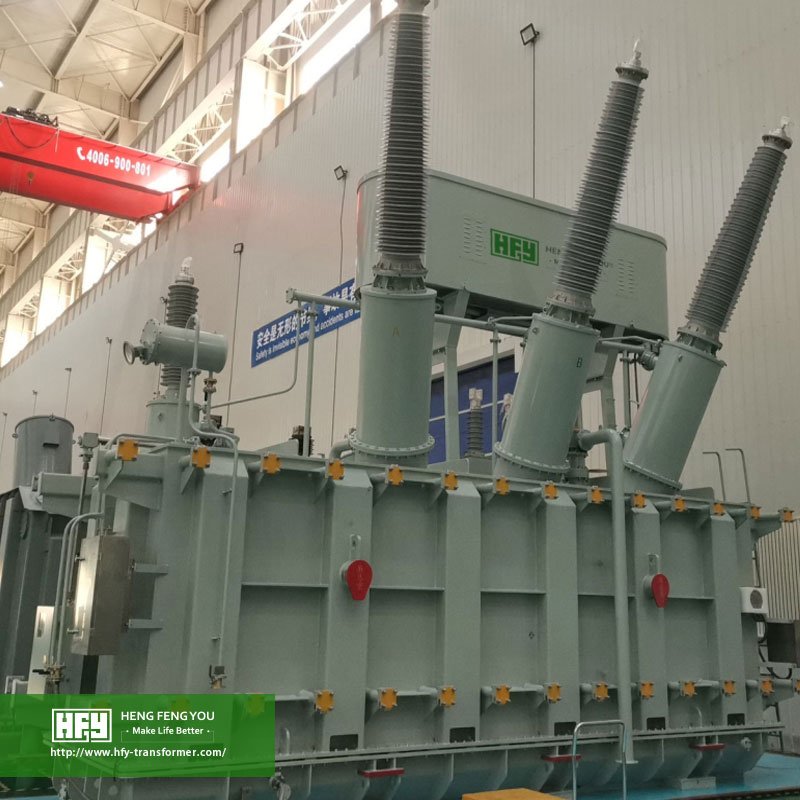

230 KV Power Main Transformer

230kV Power Transformer Solution

I. 230kV Power Transformer Selection Scheme

The 230kV three-phase oil-immersed power transformer is a core high‑voltage equipment for national/regional transmission grids, large industrial complexes, major new energy bases, and large power plant step‑up applications. It is used for long‑distance power transmission, voltage regulation and efficient power distribution, with a maximum capacity of 400MVA. It has been operating reliably in more than 50 countries and regions worldwide. With 30 years of professional manufacturing experience, Hengfengyou Electric provides a complete 230kV transformer selection solution that meets global mainstream standards, ultra‑high efficiency, long service life, and strong environmental adaptability.

1. Structure Type & Cooling Mode

• Mainstream Type: Three‑phase two‑winding / three‑winding oil‑immersed power transformer
• Capacity Range: 50MVA – 400MVA
• Cooling: ONAF, OFAF, ODAF available
• Applications: Main grid substations, large industrial plants, wind/solar power bases, urban bulk supply substations, power plant main step‑up stations

2. Standards, Certifications & Energy Efficiency

• Standards: GB, IEC60076, GOST, EN, NF, ANSI/IEEE (customizable to client standards)
• Certifications: ISO, CE, IEC, SABS, COC, CSA, UL
• Efficiency: Efficiency >99.2%, compliant with EU 2015/2014/548/EC Ecodesign Tier 2
• Loss: Ultra‑low no‑load and load loss for long‑term energy saving and low carbon

3. Winding Structure Selection (Two‑Winding vs Three‑Winding)

• Two‑Winding Transformer
• Three‑Winding Transformer

4. On‑Load Tap Changer (OLTC) Selection

• MR (Germany): High reliability, mechanical life >150,000 operations, for large grid and high‑end projects
• ABB: Balanced performance, global service network, compatible with smart grid control
• Huaming (China): Cost‑effective, fast after‑sales service, life ≈80,000 operations
• Principle: Imported brands for 230kV main grid and harsh environments; domestic brands for cost‑sensitive large industrial projects

5. Environmental Adaptability

• Enhanced external insulation and heavy‑duty corrosion protection for high altitude, heavy pollution, coastal salt fog, and extreme high/low temperature
• Low noise, fire‑resistant design, enhanced heat dissipation for urban/indoor/underground 230kV substations
• Stable performance for large‑scale PV and wind farm fluctuating loads

II. 230kV Transformer Design & Installation Scheme

1. Layout & Connection

• Preferred GIS/HGIS switchgear for compact layout, high safety and reliability
• Connected by gas‑oil bushing, GIB or high‑voltage power cable
• Complies with strict N‑1 security criterion, supports single/parallel and grid interconnection operation

2. Key Installation Procedures

• Lifting & Placement: Heavy‑duty accurate hoisting with qualified large crane
• Accessory Installation: Radiator, high‑voltage bushing, conservator, cooling system, OLTC, surge arrester
• Vacuum Oil Filling & Hot Oil Circulation: Strict process to remove moisture and gas
• Standing & Venting: Stand ≥48 hours, repeated degassing and inspection
• Grounding: Neutral point, tank body, arrester combined reliable grounding; resistance ≤2Ω

3. Protection Configuration

• High‑grade zinc oxide lightning arrester on HV side
• CSP HV fuse / high‑voltage circuit breaker
• Complete main and backup relay protection: differential, Buchholz, overcurrent, zero sequence, temperature, pressure, gas protection

III. 230kV Transformer Commissioning & O&M Scheme

1. Pre‑Commissioning Tests

• Winding DC resistance, ratio, polarity, vector group test
• Insulation resistance, applied voltage, induced withstand voltage test
• Partial discharge test (strict standard for 230kV)
• Insulation oil test: breakdown voltage, moisture, DGA, furan analysis
• No‑load and load loss test to verify ultra‑high efficiency

2. System Commissioning

• Protection testing: differential and backup protection integrated linkage test
• 5 times no‑load impulse closing test
• On‑load test to verify protection polarity and metering accuracy
• Cooling system and OLTC full‑range linkage test

3. Intelligent O&M & Long Life Design

• Design life >35 years, actual life up to 50 years with professional maintenance
• Standard online monitoring: DGA, core grounding current, winding temperature, partial discharge, bushing monitoring
• Remote monitoring, condition‑based maintenance, intelligent early warning and alarm
• Life extension: control winding hot‑spot temperature ≤60℃, avoid long‑term overload, regular oil analysis and maintenance

4. Environmental Protection & Low Carbon

• FR3 biodegradable vegetable oil available, biodegradability >95%
• High‑proportion recyclable materials, low carbon footprint, in line with global “dual carbon” goals

5. Delivery Time

• Standard model: 120 days
• Emergency order: 75 days fastest
• Custom model (special impedance, high altitude, special cooling): 6–9 months

IV. Core Specification Summary

V. Summary
Hengfengyou 230kV power main transformer features 30 years of high‑voltage manufacturing experience, global high‑level certifications, efficiency over 99.2%, service life over 35 years, and reliable delivery. It is widely used in national main grids, large industrial and mining groups, large‑scale new energy step‑up bases, regional core substations, and large power plants. The products run reliably in more than 50 countries including Tanzania, Zimbabwe, Ghana, South Africa, Kenya, Zambia, Sudan, Libya, Congo, UAE, Saudi Arabia, Iraq, Syria, Bangladesh, etc.

We adhere to standardized high‑voltage design, modular precision manufacturing, intelligent O&M, and full life cycle service to provide customers with safe, reliable, energy‑saving and environmentally friendly 230kV power transmission and transformation solutions.

VI. 230KV Power Main Transformer FAQ
Q1: What is a 230kV power main transformer?
A: It is the core equipment of high‑voltage transmission grids, used to step down 230kV to 110kV/35kV or step up medium voltage to 230kV for long‑distance transmission. Capacity range: 50MVA–400MVA. Components: core, winding, tank, heavy‑duty cooling system, high‑voltage bushings, protection devices.

Q2: What are the main applications of 230kV transformers?
Main grid hubs: connecting regional transmission networks
Large industries: steel, chemical, mining, metallurgy
Large new energy: utility‑scale PV and wind farm main step‑up
Urban core substations: bulk power supply for metropolitan areas
Large power plant main step‑up stations

Q3: Difference between two‑winding and three‑winding 230kV transformers?
Two‑winding: 230kV + one medium/low‑voltage winding; simple structure, lower cost
Three‑winding: 230kV + two medium/low‑voltage windings; multi‑voltage power supply, higher reliability, higher cost

Q4: How to choose OLTC brands: MR, ABB, Huaming?
MR: >150k operations, highest reliability, for 230kV main grid projects
ABB: balanced performance, global service network, smart grid compatible
Huaming: cost‑effective, fast service, for large industrial projects
Imported for main grid and harsh environments; domestic for cost‑sensitive industrial projects

Q5: What is the delivery time for 230kV transformers?
Standard: 120 days
Emergency: 75 days fastest
Custom (high impedance, high altitude, special cooling): 6–9 months

Q6: What is the design life of 230kV transformers?
Design life: >35 years (IEC high‑voltage standard)
Actual life: up to 50 years
Key factors: load rate, maintenance, environment; control winding temp ≤60℃

Q7: What is the warranty term?
Warranty: 24–36 months after delivery (per contract)
Coverage: manufacturing defects
Consumables (OLTC, bushings): usually 2‑year separate warranty
Exclusions: man‑made damage, natural disasters, misuse

Q8: What after‑sales service is provided?
Installation guidance, commissioning support, professional operation training
Periodic maintenance: oil test, preventive test, condition assessment
Emergency response: on‑site within 48 hours
Upgrade: intelligent monitoring, capacity expansion, noise reduction

Q9: How to protect against lightning and short circuit?
Install high‑grade zinc oxide arresters
Equip high‑voltage CSP fuses or circuit breakers
Reliable grounding system (≤2Ω)
Complete main and backup relay protection system
