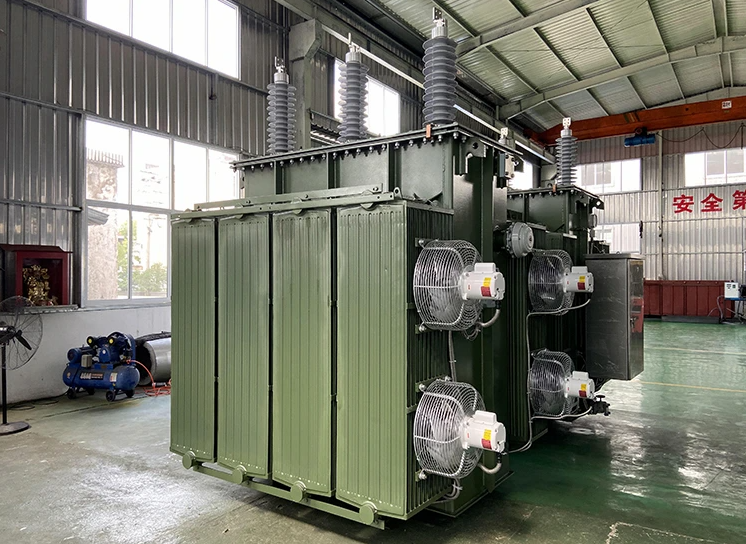

1500 kva transformer
Copper windings with capacities ranging from 150 to 5000 KVA and aluminum windings from 750 to 2500 kVA.
Primary voltages offered are 4160, 6600, 13200, 13800, 23000, 33000, 24940, 34500, and 44000 V, with secondary voltages including 220, 415, 440, 460, 480, 23000, and 4160 V.
Standard connections include Delta-Star and Star-Delta, with special connections like Star-Star and Zig-Zag.
Temperature rise of windings is controlled at 55º and 65 ºC, suitable for environments with temperatures up to 40 ºC.
Features a column-type circular core cut at 45º with interleaved stacking made of high grain oriented silicon steel for enhanced permeability.
Sizes range from 30 kVA to 5000 kVA.
Each unit is equipped with thermometers, liquid level gauges, and pressure vacuum gauges.
Additional options include on/off loadbreak switches, bayonet fuses (with or without partial range current limiting fuses), and surge or lightning arresters.
Extensive experience in supplying projects in the Americas, including the U.S. and Canada.
All products are qualified with CSA certification and SGS test reports.
Comprehensive after-sales service and installation teams available in Canada, the USA, and other regions.
Strong design capabilities for high efficiency, special ambient conditions, low sound levels, and 50 Hz and 60 Hz k-factor ratings.
Known for fast delivery times to meet the urgent demands of the cryptocurrency mining industry.
