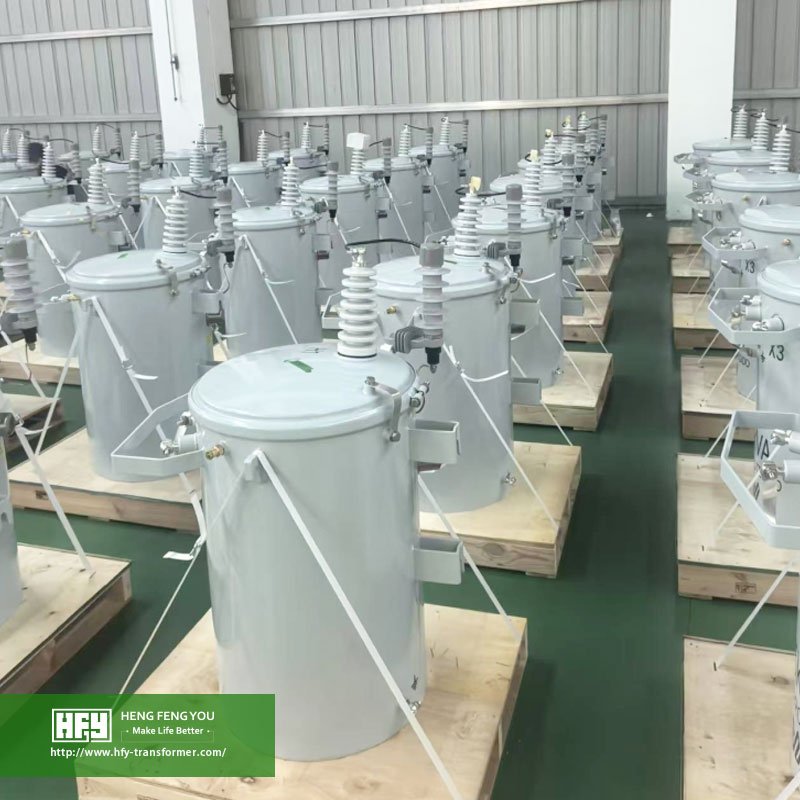

5 KVA Single Phase Pole Mounted Transformer

Hengfengyou Electric: 5kVA Single‑Phase Pole‑Mounted Transformer Solution

I. 5kVA Single‑Phase Pole‑Mounted Transformer Selection Scheme

With 30 years of specialized manufacturing experience, Hengfengyou Electric delivers a compact, reliable 5kVA single‑phase pole‑mounted transformer optimized for rural grids, public facilities, residential communities, and small‑scale power users. Selection focuses on safety, efficiency, environmental adaptability, and long‑term economy.

1. Type & Structural Features

• Standard Type: Oil‑immersed, single‑phase, pole‑mounted distribution transformer
• Capacity: 5kVA (light‑duty distribution, typical for scattered low loads)
• Voltage Range: Primary up to 34.5kV; Secondary 120V/240V (customizable per local grid)
• Standards: IEC60076, ANSI/IEEE C57 series; customizable to client standards
• Certifications: ISO, CE, IEC, CSA, UL approved

2. Efficiency & Energy Saving

• Efficiency >99%, fully compliant with DOE 2016 energy‑efficiency requirements
• Low no‑load & load loss, reducing grid operating cost over life cycle

3. Protection & Environmental Adaptability

• IP65 enclosure: dust‑tight, moisture‑resistant, corrosion‑resistant
• Maintenance‑free design, service life >25 years
• FR3 vegetable oil option available: biodegradability >95%, eco‑friendly, low fire risk

4. Application Scenarios

• Rural power grids, scattered residential loads
• Public lighting, small public facilities
• Temporary power for construction & events
• Farm irrigation, small commercial end‑users

5. Technical sheet for 5kva single-phase pole-mounted transformer

II. Design & Installation Scheme

1. Structural & Layout Design

• Compact, lightweight for pole mounting; minimizes ground occupation
• Optimized core & winding for low noise, low loss, strong short‑circuit withstand
• Integrated lifting lugs & mounting brackets for fast installation
• Suitable for single‑pole or cross‑arm mounting

2. Key Installation Procedures

1. Pole & Foundation
2. Fixing & Stability
3. Wiring & Clearance
4. Grounding
5. Space & Ventilation

3. Lightning & Overcurrent Protection

• Equip with zinc‑oxide surge arresters on HV side
• Match with CSP HV fuses or circuit breakers for fault interruption
• Ensure complete earthing to meet safety standards

III. Commissioning & Operation & Maintenance Scheme

1. Pre‑Commissioning Tests

• Winding DC resistance, voltage ratio & polarity check
• Insulation resistance & applied voltage test
• Oil quality test (breakdown voltage, moisture, etc.)
• No‑load & load loss measurement to verify efficiency

2. System Commissioning

• No‑load energization & monitoring of temperature, noise, voltage
• On‑load test to confirm output stability & protection coordination
• Verify correct operation of arresters, fuses, and earthing

3. Intelligent & Maintenance‑Free Operation

• IP65 sealed structure: essentially maintenance‑free
• Routine inspection recommended every 6–12 months
• Optional online monitoring: oil temperature, winding temperature, DGA

IV. Core Specification & Recommendation Summary

V. Summary

Hengfengyou 5kVA single‑phase pole‑mounted transformer integrates high efficiency, high protection, maintenance‑free, and eco‑friendly design. Ideal for rural electrification, public facilities, and scattered low‑load users, it meets global standards including IEC, ANSI/IEEE, and DOE 2016. With a proven track record across the Philippines, Australia, USA, Japan, Dominica, Guyana, Honduras, Samoa, Peru, Argentina, Venezuela, Chile, and beyond, we support OEM/ODM to match local voltage, standards, and certification requirements.

VI. 5 KVA Single Phase Pole Mounted Transformer FAQ

Q1: What is a 5kVA single‑phase pole‑mounted transformer?

A: A small distribution transformer installed on utility poles, stepping down medium‑voltage lines to low voltage (e.g., 240V/120V) for households or small commercial users.

Q2: What is the typical capacity range for pole‑mounted single‑phase transformers?

A: Common range 10kVA–167kVA (minimum 3kVA, maximum 500kVA). Rural systems often use 25kVA or 50kVA; urban areas may use higher ratings.

Q3: What to note when installing a 5kVA single‑phase pole transformer?

A: Choose a stable pole with ≥3m ground clearance; secure firmly to avoid vibration; reliable earthing ≤4Ω; keep clear for heat dissipation and maintenance.

Q4: Difference between single‑phase and three‑phase pole‑mounted transformers?

A: Single‑phase outputs 120V for residential/low‑load use; simpler structure, more cost‑effective. Three‑phase supplies 480V for industrial/high‑load areas.

Q5: How to identify a faulty 5kVA pole transformer?

A: Unusual noise or vibration; excessive oil temperature or leakage; unstable output voltage; burn marks or tracking on the tank.

Q6: Maintenance cycle for 5kVA pole‑mounted transformers?

A: Routine inspection every 6–12 months: oil test (oil‑immersed), bushing cleaning, joint retightening, earthing check.

Q7: Causes of transformer overheating?

A: Overload; poor heat dissipation (dust buildup); internal short or insulation aging; insufficient oil level.

Q8: How to protect against lightning or short circuit?

A: Install surge arresters; use CSP HV fuses or breakers; maintain compliant earthing.

Q9: Service life of pole‑mounted transformers?

A: Normal life 20–30 years, depending on environment, load rate, and maintenance. Harsh conditions (high humidity, salt fog) may shorten life.
