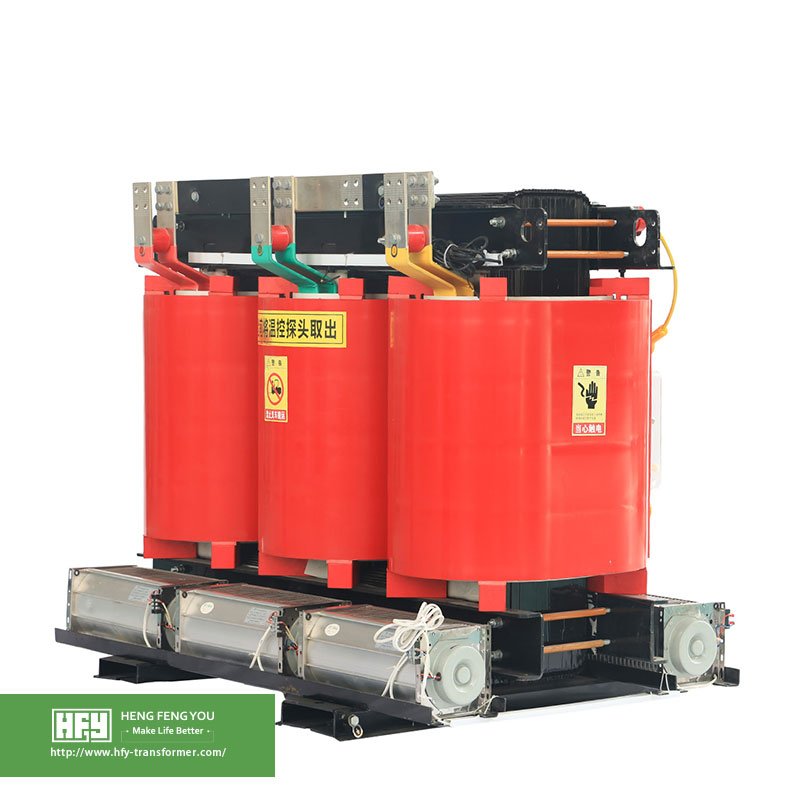

Hengfengyou 7.2kV US standard three-phase dry-type distribution transformer is a safe, energy-saving, environmentally-friendly and maintenance-free power distribution product compliant with American industry standards. It is widely applicable to North American urban power grids, commercial and industrial facilities, institutional buildings, data centers, high-rise constructions and all indoor high-standard power supply scenarios.
Featuring low operational loss, ultra-low noise, superior flame retardancy and zero pollution, all performance indicators fully meet and exceed US ANSI, IEEE and corresponding national standard requirements. The product achieves F1 class fire resistance, with a high lightning impulse withstand voltage of 95kV. Equipped with forced air cooling system, it can operate stably under 120% rated continuous load. Supported by a full-set intelligent temperature monitoring and protection system, the transformer delivers ultra-high operational reliability and extended service life.
Our 7.2kV US standard dry-type transformers have been exported to more than 50 countries and regions, focusing on serving North American, Latin American and Oceania markets, and have gained widespread recognition and reliable market reputation in global American-standard power distribution systems.
North American 7.2kV urban distribution network construction and renovation
Indoor power supply for commercial complexes, hospitals, educational institutions and data centers
Power distribution for industrial and mining enterprises, manufacturing plants and municipal infrastructure under US standard specifications
High-rise buildings, underground power stations, crowded public facilities and fire-critical scenarios
ANSI C57.12.01 / ANSI C57.12.22
IEEE C57.110 / IEEE C57.12.90
IEC 60076 series (dual-standard compatibility)
GB 1094 series (domestic manufacturing benchmark)
Low loss & energy saving: Adopts US-standard optimized electromagnetic simulation design, effectively reduces no-load and load loss, delivers remarkable long-term energy-saving benefits and meets North American energy efficiency certification requirements.
Ultra-low noise: Equipped with low-vibration laminated core and optimized integral winding structure, ensuring low-noise stable operation, fully compliant with American urban and residential area noise control standards.
Flame retardant & safe: Reaches F1 level fire protection performance, with self-extinguishing, halogen-free, smokeless and non-toxic features, zero fire and explosion risks, meeting strict US building fire safety codes.
Strong impulse withstand: 7.2kV voltage class lightning impulse withstand level up to 95kV, excellent lightning resistance and overvoltage surge suppression capability, adapting to complex outdoor and grid fluctuation environments in North America.
High overload capacity: Supports stable operation under 120% rated load with forced air cooling (AF mode), strong load adaptability to meet peak power demand of US industrial and commercial power systems.
Intelligent temperature control: Integrated high-precision temperature monitoring, automatic fan control and multi-stage overtemperature alarm/trip protection system, realizing intelligent operational protection.
Customizable rugged enclosure: Optional aluminum alloy, cold-rolled steel and stainless steel materials; protection class supports IP20 / IP23, fully adapting to diverse US installation environment requirements.
Maintenance-free design: Integral cast resin insulation structure, with excellent moisture-proof, dust-proof and corrosion-resistant properties, suitable for various harsh indoor and semi-outdoor working conditions, reducing post-operation maintenance costs.
HV winding: High-purity copper strip continuous winding, high-vacuum integral casting, matched with self-developed patented flame-retardant epoxy resin formula compliant with US environmental standards.
LV winding: High-precision copper foil winding, thermosetting epoxy prepreg integral insulation, with outstanding short-circuit impact resistance and mechanical stability.
The whole winding features excellent structural integrity, ultra-low partial discharge value and high mechanical strength, fully meeting ANSI/IEEE standard mechanical and electrical performance requirements.
Adopts high-grade imported cold-rolled grain-oriented silicon steel sheet for North American standard products
Optimized ladder-type lap joint and multi-stage step-lap composite design
Special mineral oxide anti-corrosion insulation coating, effectively reducing no-load loss and operating noise, reaching US advanced energy efficiency level
Dual cooling modes: Natural air cooling (AN) / Forced air cooling (AF)
Real-time high-precision temperature monitoring for three-phase independent windings
Automatic fan start-stop linkage, overtemperature pre-alarm and emergency trip protection functions
Stable and reliable long-term continuous operation performance, adapting to 24/7 continuous power supply scenarios of US commercial and industrial systems
Optional materials: High-strength aluminum alloy, galvanized cold-rolled steel, anti-rust stainless steel (meeting US material safety standards)
Protection class: IP20 (indoor anti-touch protection) / IP23 (semi-outdoor rainproof and dustproof protection)
The enclosure is designed with reasonable ventilation structure, elegant appearance, simple and fast installation, convenient daily inspection and maintenance
Compact integral structure, small floor occupation, suitable for indoor power rooms, basement compact power distribution spaces and skyscraper dedicated electrical floors under US standards
Oil-free fully dry-type design, zero flammable medium, no special fire protection facility configuration requirements, compliant with US NFPA fire safety specifications
Low-noise optimized design, allowing installation close to load centers to reduce line loss
Matches American standard foundation installation size, simple construction process and low overall project cost
The installation site must be kept dry, well-ventilated and free of corrosive, flammable and explosive gases
Reserve sufficient safe insulation distance and heat dissipation space in accordance with ANSI installation specifications
Ensure firm and horizontal foundation installation to avoid equipment vibration and structural deformation during operation
Adopt standard American-spec cable connection process, with reliable system grounding (grounding resistance ≤ 4Ω)
Full intelligent temperature monitoring and control system
Integrated overcurrent, overload and overtemperature multi-dimensional protection
Built-in surge arresters for overvoltage and lightning surge protection
Compatible with traditional and intelligent modular power distribution systems in North America
Winding DC resistance precision test
Voltage ratio, polarity and vector group verification (compliant with US standard parameters)
Insulation resistance and withstand voltage test
No-load loss, load loss and temperature rise test
Full function verification of temperature control and protection system
All dry-type oil-free structure, realizing truly maintenance-free operation
Daily regular inspection: equipment appearance, operating temperature, connection tightness and running noise
Regular dust cleaning of ventilation channels to ensure efficient heat dissipation
Supports remote intelligent monitoring and data transmission, adapting to intelligent operation and maintenance management of modern US power grids
Ultra-long design service life under rated standard working conditions
Strong environmental adaptability, with excellent moisture-proof, dust-proof and salt fog corrosion resistance
Specially suitable for high-rise buildings, indoor closed spaces, crowded public areas and fire-sensitive key scenarios in North American markets
| Item | Core Content | Recommended Scheme/Standard |
|---|---|---|
| Type | 7.2kV three-phase dry-type distribution transformer | Cast resin, full copper winding, US standard |
| Standards | US mainstream industry standards | ANSI C57.12 series, IEEE C57 series, compatible with IEC/GB |
| Performance | Low loss, ultra-low noise, high energy efficiency | Exceeds US ANSI/IEEE standard performance parameters |
| Fire Class | F1 flame retardant, non-toxic, smokeless, self-extinguishing | Meets US building fire safety codes, preferred for indoor scenarios |
| Lightning Impulse | 7.2kV class: 95kV | Strong anti-lightning and anti-surge capability |
| Cooling Mode | AN / AF dual mode | Supports 120% rated load stable operation with AF cooling |
| Enclosure | Aluminum alloy / cold-rolled steel / stainless steel | IP20 / IP23 protection class, customizable |
| Application | US standard urban grid, industrial & civil buildings, indoor power distribution | Fire-safe, maintenance-free, high-reliability power solution |
Hengfengyou 7.2kV US standard three-phase dry-type distribution transformer integrates high safety, ultra-high energy efficiency, low noise, environmental protection and maintenance-free core advantages. With 30 years of professional transformer manufacturing experience and long-term global US-standard market verification, the product adopts advanced high-vacuum integral casting technology, high-quality low-loss core and intelligent temperature control protection system. Its overall performance fully complies with ANSI and IEEE American industry standards, and perfectly meets the power distribution demands of modern North American urban grids, industrial manufacturing and civil construction projects.
This series of products have been exported to more than 50 countries worldwide, and are widely applied and highly recognized in North America, Latin America and other American-standard market regions. We provide global customers with safe, reliable, energy-saving and long-service-life professional power distribution solutions for various indoor closed spaces and fire-sensitive scenarios.
Q1: What is a 7.2kV US standard dry-type distribution transformer?
A: It is an ANSI/IEEE compliant cast-resin oil-free flame-retardant dry-type transformer, specially designed for 7.2kV American-standard power distribution systems, widely used in indoor buildings, industrial facilities and fire-critical scenarios in North American markets.
Q2: What are the advantages of 7.2kV US standard dry-type transformers versus oil-immersed transformers?
A: The US standard dry-type transformer features flame retardant, non-toxic, smokeless, oil-free and zero explosion risk, with ultra-low operating noise and maintenance-free performance. It fully meets strict American building and power safety standards, making it the optimal choice for indoor urban and commercial industrial power distribution.
Q3: What fire rating does the 7.2kV US standard dry-type transformer achieve?
A: It reaches F1 class fire resistance, with self-extinguishing, halogen-free, non-toxic and smokeless properties, fully complying with US NFPA building fire protection codes and municipal power safety regulations.
Q4: What is the lightning impulse withstand level of the product?
A: The 7.2kV US standard model has a lightning impulse withstand voltage of 95kV, possessing excellent lightning resistance and grid overvoltage surge suppression performance.
Q5: Does the 7.2kV US standard dry-type transformer support overload operation?
A: Yes. Equipped with forced air cooling (AF) system, the transformer can operate stably for a long time under 120% rated load, adapting to peak power consumption of US industrial and commercial loads.
Q6: What protection classes are available for the product enclosure?
A: It provides two mainstream protection classes: IP20 (indoor anti-touch protection for power rooms) and IP23 (semi-outdoor rain and dust resistance). Enclosure materials can be customized according to project requirements.
Q7: Is daily maintenance required for the 7.2kV US standard dry-type transformer?
A: It is basically maintenance-free. Only regular appearance inspection, temperature check and ventilation dust cleaning are needed, greatly reducing post-operation maintenance costs and labor input.
Q8: What scenarios is the 7.2kV US standard dry-type transformer suitable for?
A: It is widely applicable to North American 7.2kV urban distribution networks, commercial buildings, hospitals, schools, data centers, basement power rooms, high-rise buildings and various industrial manufacturing plants compliant with US standards.
Q9: What industry standards does the product comply with?
A: It strictly complies with core US standards including ANSI C57.12.01, ANSI C57.12.22 and IEEE C57 series, and is compatible with IEC and GB standards, fully meeting global American-standard market access and project bidding requirements.
